Benz

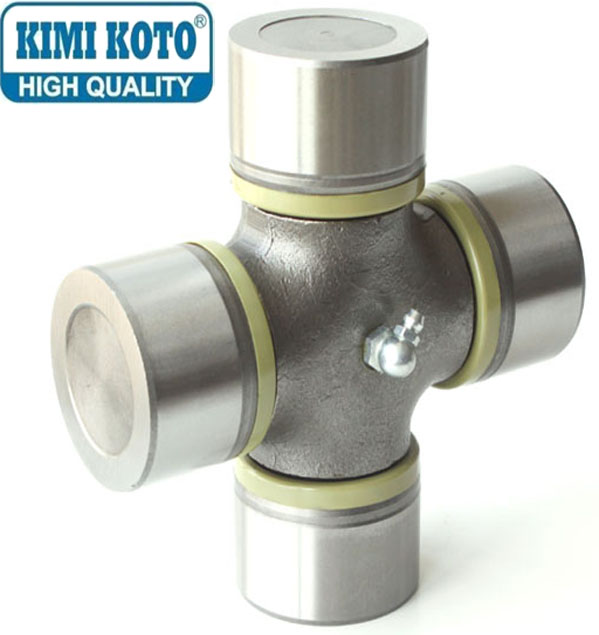

Benz U Joints
| Details: | |||
| Material: | 20Cr/20CrMnTi | Model Number: | 0004100131 |
| Place of Origin: | Zhejiang China | Brand Name: | KIMI KOTO |
| Product Name: | Forklift U Joint | Sizes: | 57X152MM |
| Market: | After Market/OEM | Circlip Thickness: | 2MM |
| Weight: | 4058g | Packing Details: | Inner packing+Outer Packing+ Wooden Boxes |
| Product Description: | |||
| Cross Shaft:20Cr/20CrMnTi | Bearing Cup:20Cr/20CrMnTi | ||
| Surface Hardness: HRC58-64 | Surface Hardness: HRC58-64 | ||
| Core Hardness: HRC33-48 | Cementite deepness:0.3-0.7mm | ||
| Cementite Deepness:0.8-1.3mm | Needle:GCr15 Surface Hardness: 58-64HRC | ||
| Dust Cover: NBR | Tolerance: D:0--0.015mm L:0--0.20mm | ||
| Grease:No.2 automobile grease | Circlips:65Mn Hardness:48-53HRC | ||
Benz U Joints
|

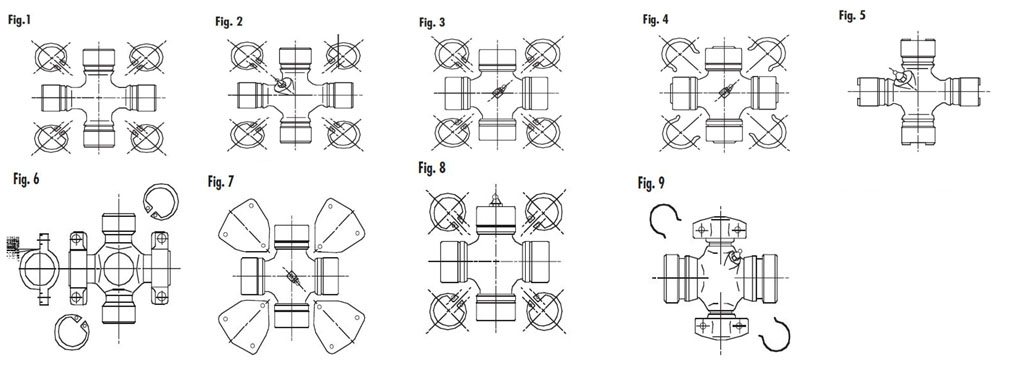

FIG |
GKN NO |
D mm |
O mm |
L mm |
MERCEDES |
ORIGINAL NO |
|
4 |
HS446 |
28 |
49 |
|
1004100131/1114100031 |
1123500028/1804100331 |
|
3 |
HS222 |
35 |
|
96.8 |
304100431 |
304101831 |
|
4 |
HS480 |
38 |
57 |
|
3024100031/3104100031/ 3124111231/3854100231 |
3124111331/3224110031/3224110131 |
|
3 |
HS236 |
38.03 |
|
105.6 |
304102031 |
|
|
4 |
HS486 |
42 |
66.4 |
|
3174100131/3374010031/ 3374100031/3374105031 |
3374110031/3544100131 /3854100131 |
|
3 |
|
42 |
|
106 |
6174100031 |
|
|
3 |
HS259 |
45 |
|
118.1 |
304102231 |
|
|
3 |
HS260 |
45 |
|
120.4 |
4100031/3174100031 |
3044100031 |
|
3 |
|
48 |
|
152 |
3854100731 |
|
|
3 |
HS284 |
53 |
|
135 |
3634100631/6204100131 |
3634100031/0004101628 |
|
3 |
|
57 |
|
126 |
3874100031 |
|
|
3 |
|
65 |
|
172 |
6454100131 |
|
|
4 |
|
68 |
89 |
|
6564100131 |
|
|
3 |
HS272 |
48 |
|
126 |
3604100232/3604100231 /3814100031/3814100231 /3854100031 |
3614100231/3854100531/3854100731/3874100131 |
|
3 |
HS282 |
52 |
|
133 |
3354100031 |
|
|
3 |
HS289 |
57 |
|
152 |
3874100031/0004100131 |
7186420617000 /6204100031 |
