Iveco
Iveco U Joints
| Details: | |||
| Material: | 20Cr/20CrMnTi | Model Number: | 93156581 |
| Place of Origin: | Zhejiang China | Brand Name: | KIMI KOTO |

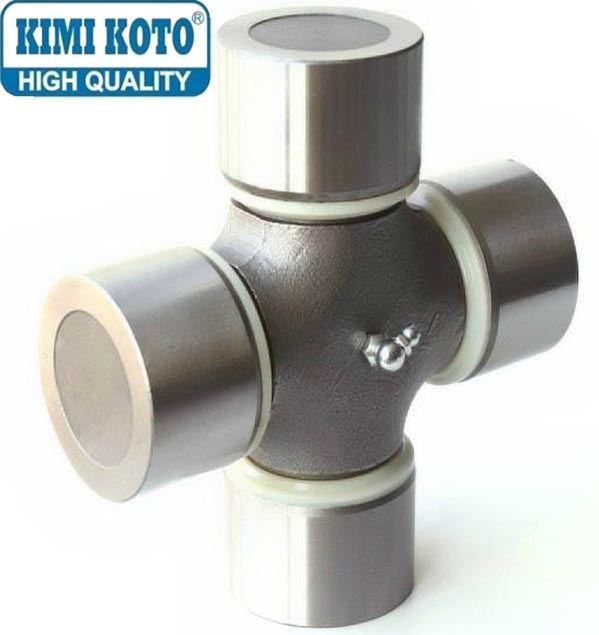

| Product Name: | Iveco U Joint | Sizes: | 65X172MM |
| Market: | After Market/OEM | Circlip Thickness: | 2MM |
| Weight: | 6264g | Packing Details: | Inner packing+Outer Packing+ Wooden Boxes |
| Product Description: | |||
| Cross Shaft:20Cr/20CrMnTi | Bearing Cup:20Cr/20CrMnTi | ||
| Surface Hardness: HRC58-64 | Surface Hardness: HRC58-64 | ||
| Core Hardness: HRC33-48 | Cementite deepness:0.3-0.7mm | ||
| Cementite Deepness:0.8-1.3mm | Needle:GCr15 Surface Hardness: 58-64HRC | ||
| Dust Cover: NBR | Tolerance: D:0--0.015mm L:0--0.20mm | ||
| Grease:No.2 automobile grease | Circlips:65Mn Hardness:48-53HRC | ||
Iveco U Joints
|

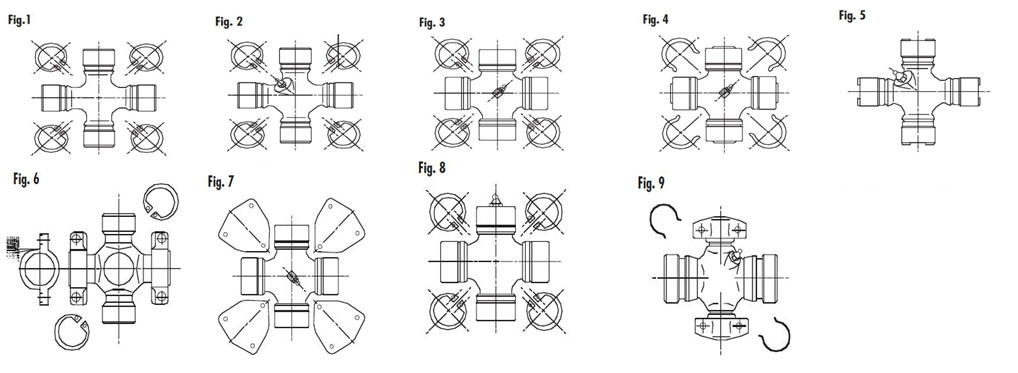

FIG |
SICIT NO |
D mm |
O mm |
L mm |
ORIGINAL NO |
|
2 |
1360 |
27 |
|
81.7 |
1905986-5990411/9928022/93160322 |
|
2 |
4090 |
30.2 |
|
92 |
8197741 |
|
2 |
1280 |
30.2 |
|
106.3 |
4655182-4675624/4878942-9932697-92601339/93158199 |
|
9 |
3000 |
33.3 |
|
79.3 |
9986818/4463536 |
|
2 |
1020 |
39 |
|
116.4 |
4514424-4603984/4703371-4685815/4684735-4583754-5 |
|
2 |
1140 |
39.7 |
|
115.8 |
4679190-9932700/9105823-8120185/4679796-8120185 |
|
3 |
2380 |
42 |
|
104.5 |
93159330-42480741/1275430 |
|
5 |
1400 |
47.6 |
|
135 |
4656653-4686733/4686738-4699481 |
|
3 |
2660 |
47.6 |
|
135.2 |
9981618-9982407 |
|
3 |
1760 |
48 |
|
116.5 |
42484713-2980490/2981719 |
|
8 |
2600 |
48 |
|
125.9 |
42485180 |
|
5 |
1000 |
49 |
|
135 |
875880-875881/4654827-4655900/4672043-4686732 |
|
5 |
1040 |
49 |
|
155 |
876044-876045/4582853-4656057/4663672-4664726/4672046-44097283 |
|
5 |
1120 |
49.2 |
|
154.7 |
4620151-4656683 |
|
2 |
2340 |
49.2 |
|
154.9 |
5978564 |
|
3 |
1740 |
52 |
|
133 |
93159316 |
|
3 |
1720 |
57 |
|
144 |
42481507-42491973/2980217 |
|
3 |
2620 |
57 |
|
152 |
93157114 |
|
2(5) |
1100(2000) |
59 |
|
167.4(167.6) |
93157124 |
|
5 |
1060 |
60 |
|
170.2 |
4021288-4556728/4641105-4656056/4674084-4683730 |
|
3 |
2180 |
65 |
|
172 |
8194583-42490052/93156581 |
